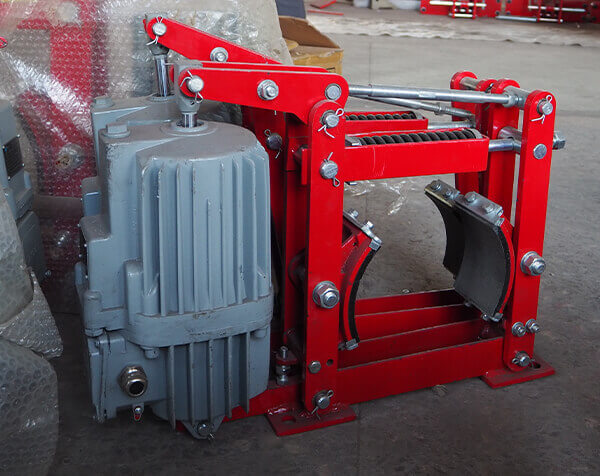

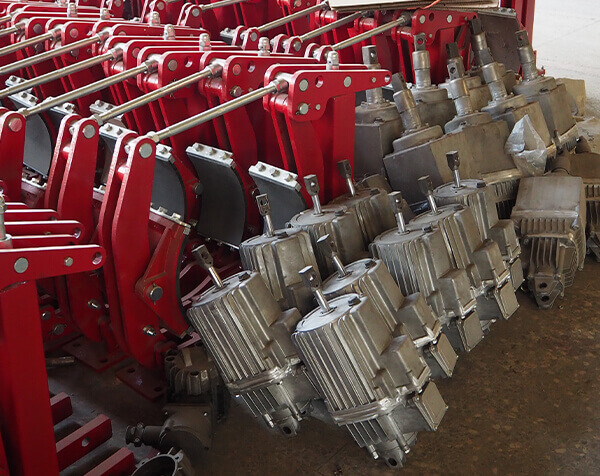

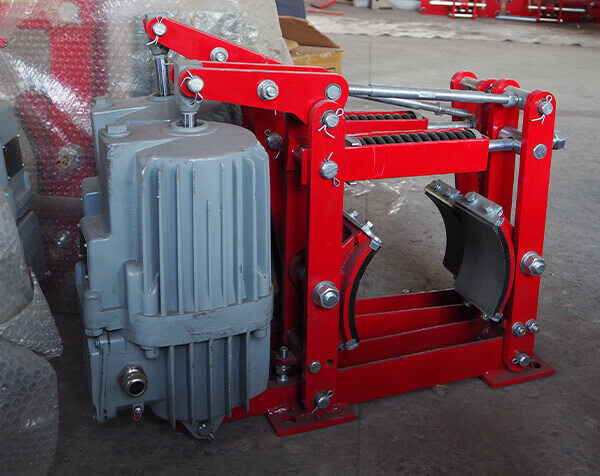

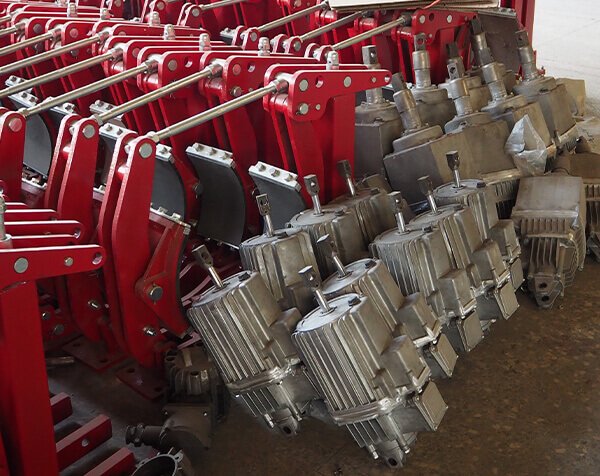

Description
Electromagnetic brake is a connector that transmits the torque of the active side to the passive side. It can be freely connected, disconnected or braked as needed. It has the advantages of compact structure, simple operation, sensitive response, long life, reliable use, and easy remote control. Electromagnetic brake: Electromagnetic brake uses the electromagnetic principle to increase the brake resistance through the action of electromagnetic force, thereby achieving the braking process.
Features
1.No need to lubricate the rotating friction parts
Since the working friction parts (connecting shafts) of the brake are made of oil-free DRY METAL, no lubrication is required and maintenance is easy.
2.Reduction of action impact
Since the electromagnet is surrounded by a dust cover, the negative pressure of the electromagnet gap when the brake is actuated will be used to minimize the impact on the motor shaft and the brake drum.
3.Small and lightweight
The main structure is made of high-grade casting, so the appearance is exquisite, small and light.
4.High practicality and reliability
It can be used safely in harsh environments when working continuously or using frequently. (Action times: 600 times/hour)
5.Easy to separate and assemble
The component connection is composed of a shaft and screw structure, so it is easy to separate and assemble. When replacing the brake coil, it can be assembled separately.
Technical Data
| Motor | Brake | Control Box Code No. |
||||||||||||
| Frame No. |
40%ED Output Kw |
No. of Pole |
Type | MAX Braking Torque kg-m |
Coil Standard | Electro- magnet Code No |
Lining Code No. |
Drum Code No |
||||||
| Input DC 100V | Input DC 200V | |||||||||||||
| Starting Current |
Holding Current |
Resis- tance |
Starting Current |
Holding Current |
Resis- tance |
|||||||||
| 132M | 2.2,3,7 | 6 | TB- AN13 |
5,6.7 | 6.9 | 1 | 14.5 | 3.4 | 0.51 | 58,1 | MC-70N | ML- 132C |
D160- 80 |
TCB-132 |
| 160M | 5.5,7.5 | 6 | TB- AN160 |
10,14 | 10.7 | 1.6 | 9.3 | 5.4 | 0.81 | 37.1 | MC-90N | ML- 160C |
D200- 100 |
TCB-160 |
| 160L | 11 | 6 | TR- AN160 |
21.2 | 10.7 | 1.6 | 9.3 | 5.4 | 0.81 | 37.1 | MC-90N | MI- 160C |
D200- 100 |
TCB-160 |
| 180L | 15 | 6 | TB- AN180 |
30 | 9.4 | 1.4 | 10,E | 4.7 | 0,7 | 42.6 | MC-100N | ML- 180C |
D250- 125 |
TCB-180 |
| 200L | 22 | 6 | TB- AN200 |
40 | 15.8 | 2.4 | 6.3 | 7.9 | 1.2 | 25.2 | MC-110N | ML- 200C |
D250- 125 |
TCB-200 |
| 225M | 30 | 6 | TB- AN225 |
53 | 15.8 | 2.4 | 6.3 | 7.9 | 1.2 | 25.2 | MC-120N | ML- 225C |
D315- 160 |
TCB-225 |
| 250M | 37.45 | 6 | TB- AN250 |
63,80 | 14.7 | 2.2 | 6.8 | 7.4 | 1.1 | 27.1 | MC-130N | ML- 250C |
D355- 180 |
TCB-250 |
| 280M | 55 | 8 | TB- AN280 |
132 | 23.5 | 3.5 | 4.2 | 11.8 | 1.8 | 17 | MC-140N | ML- 280C |
D400- 200 |
TCB-280 |
| 315M | 75,90 | 8 | TB- AN315 |
180 | 25.6 | 3.8 | 3.9 | 12.7 | 1.9 | 15.7 | MC-160N | ML- 3150 |
D450- 224 |
TCB-315 |
| 355L | 110,132 | 10 | TB- AN355 |
335 | 37 | 5.6 | 2.7 | 18.3 | 2.7 | 10.9 | MC-170N | ML- 355C |
D500- 250 |
TCB-355 |
| 400L | 160,200 | 10 | TB- AN400 |
400,475 | 33.3 | 5 | 3 | 16.7 | 2.5 | 12 | MC-180N | ML- 4000 |
D560- 280 |
TCB-400 |
| 527L | 250,300 | 12 | TB- AN527 |
900 | 34.7 | 5.2 | 2.9 | 17.4 | 2.6 | 11.5 | MC-190N | ML- 527D |
D762- 362 |
TCB-527 |
| 527B2 | 600 | 12 | TB-AN 527B2 |
1,500 | 122.2 | 16.7 | 1.8 | MC-200N | ML- 527D |
D762- 362 |
TCB2- 527B2 |
|||
Applications
In machinery such as metallurgy, construction, chemical industry, food, machine tools, stages, elevators, ships, packaging, and in occasions such as braking during power outages (for safety reasons).
