Description
A coupling is a component that axially connects two shafts and transmits torque and motion, and has the ability to compensate for the deviation of the two shafts. In order to reduce vibration in the mechanical transmission system and reduce impact peak loads, the coupling also has certain cushioning and shock absorption performance. Sometimes, the coupling also has overload safety protection.
Features
It has the ability to compensate for radial, axial, and angular axis deviations, and has the advantages of compact structure, small turning radius, large bearing capacity, low transmission noise, and long maintenance cycle.
Technical Data
|
Type |
Nominal torque(KN·m) |
Allowable speed(r/min) |
Shaft hole diameter(d1,d2) |
Shaft hole length(Y,J1,Z1) |
D |
D1 |
D2 |
D3 |
C |
kg |
|
CLZ1 |
0.71 |
3780 |
18-40(60) |
40-142 |
170 |
110 |
55 |
95 |
2.2 |
12.8 |
|
CLZ2 |
1.4 |
3000 |
30-50(70) |
82-142 |
185 |
125 |
70 |
110 |
2.5 |
17.5 |
|
CLZ3 |
3.15 |
2400 |
40-60(90) |
112-172 |
220 |
150 |
90 |
145 |
2.5 |
33 |
|
CLZ4 |
5.6 |
2000 |
45-75(100) |
112-212 |
150 |
175 |
110 |
170 |
2.5 |
47.3 |
|
CLZ5 |
8 |
1680 |
50-90(120) |
112-212 |
290 |
200 |
130 |
190 |
5 |
69.8 |
|
CLZ6 |
11.2 |
1500 |
60-110(130) |
142-252 |
320 |
230 |
140 |
210 |
5 |
96.1 |
|
CLZ7 |
18 |
1270 |
65-120(150) |
142-252 |
350 |
260 |
170 |
240 |
5 |
129 |
|
CLZ8 |
23.6 |
1140 |
80-140(170) |
172-352 |
380 |
315 |
190 |
270 |
5 |
179 |
|
CLZ9 |
28 |
1000 |
90-160(190) |
212-352 |
430 |
365 |
210 |
280 |
5 |
221 |
|
CLZ10 |
50 |
850 |
110-180(220) |
212-410 |
490 |
420 |
260 |
320 |
5 |
328 |
|
CLZ11 |
71 |
750 |
120-220(250) |
252-470 |
545 |
470 |
300 |
380 |
5 |
468 |
|
CLZ12 |
100 |
660 |
140-250(280) |
302-550 |
590 |
520 |
340 |
420 |
5 |
658 |
Applications
It is suitable for various places that require mobile cable power supply, such as lifting electromagnets, electric flatbed carts, various cranes, hydraulic grabs, etc.

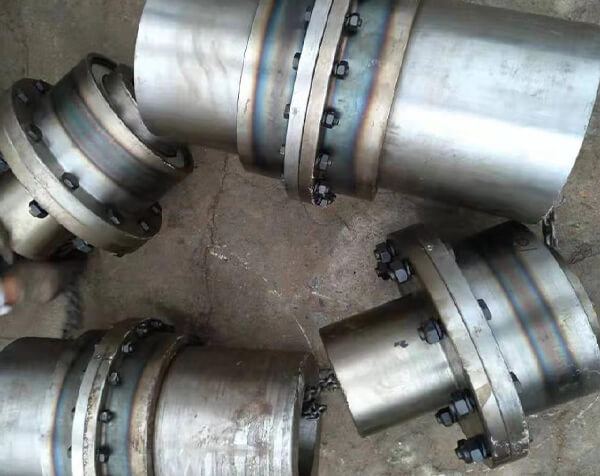

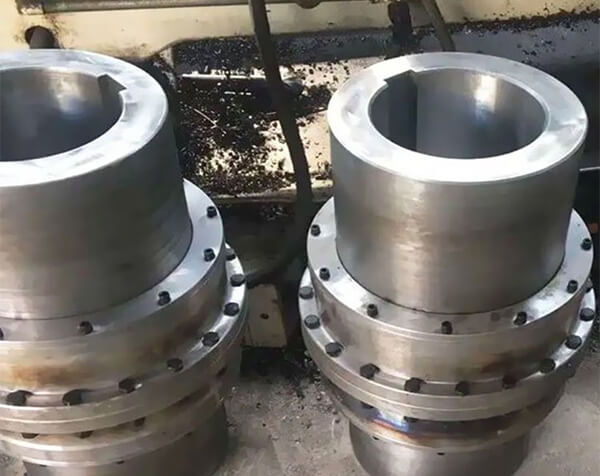

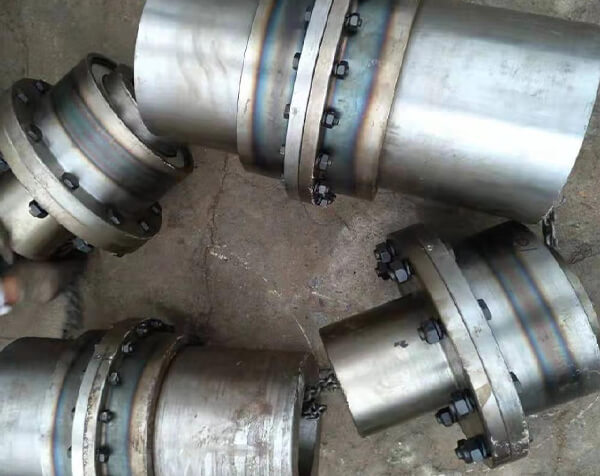

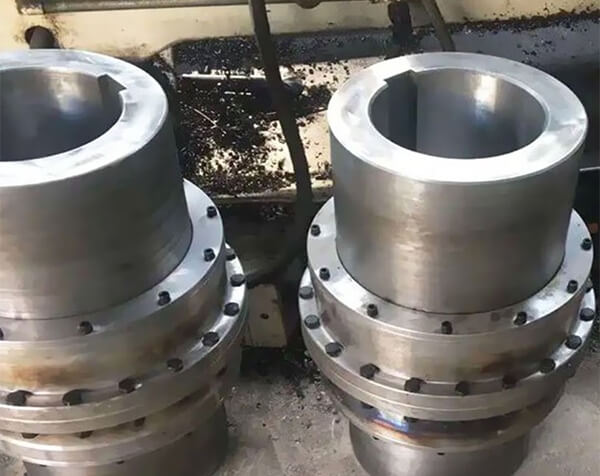

Crane coupling customized according to your needs.
The crane coupling plays a compensating role during crane operation. When the crane is running, all components are subjected to force, which can easily deform, especially the main beam of the crane. Once the main beam is deformed, it will directly affect the normal operation of the crane operating mechanism. When the main beam is in a deformed state, in order to ensure the normal operation of the operating mechanisms of various components of the crane and compensate for errors during the manufacturing and installation process of the crane, compensation is generally provided for the crane equipment. This type of coupling includes cross couplings, gear couplings, etc.
The main material of the crane coupling is forged by heating 45 # and 42CRMO. The teeth of the crane coupling need to undergo high-frequency quenching, with a quenching hardness of HRC38-55, making the coupling more wear-resistant and extending the service life of the crane coupling.
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
