Description

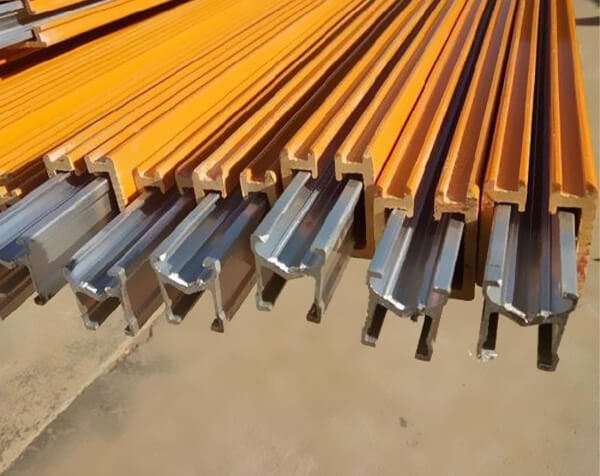

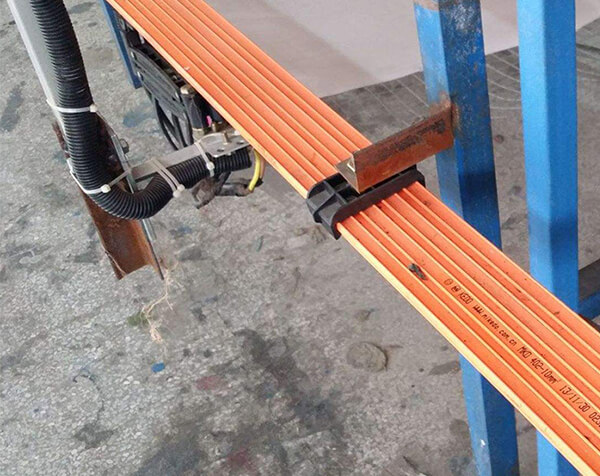

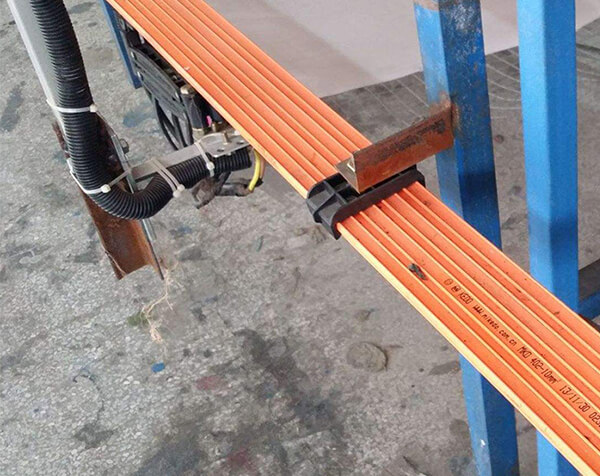

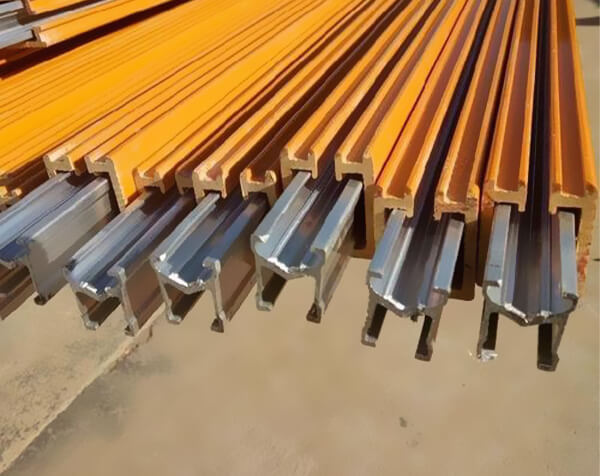

Power Supply Bus Bar is a group of power transmission devices that supply power to mobile devices. Due to the movement, the mobile device needs to constantly change its position, and in each different position, the mobile device must be able to obtain power at any time, otherwise it cannot continue to move, and then the trolley line is required
Features
1. Safe, stable, no joint (except for line feed point)
2. Compact, easy to install, economical.
3. Good insulation and impact fixed with PVC housing
4. Suitable for curve rail electric hoist
5. PVC housing ,impact resistance, ultraviolet resistance
6. Suitable in low frequency operation, and good working condition
Technical Data
|
Poles |
Conductor cross section(mm2) |
Max. current(A) |
|
3 |
3*10 |
50A |
|
3 |
3*15 |
80A |
|
3 |
3*20 |
100A |
|
3 |
3*25 |
120A |
|
3 |
3*35 |
140A |
|
4 |
4*10 |
50A |
|
4 |
3*15+1*10 |
80A |
|
4 |
3*20+1*10 |
100A |
|
4 |
3*25+1*12.5 |
120A |
|
4 |
3*25+1*15 |
140A |
|
6 |
6*10 |
50A |
|
6 |
6*15 |
80A |
|
6 |
6*20 |
100A |
Applications
Can be used for electric hoists, electric beam cranes, and electric single beam bridge cranes; Stacking cranes, automatic testing lines for mechanical and electrical products, automated production lines, mobile electric tools and other mobile electrical equipment, as well as fixed busbar ducts in factories, mines, workshops, and office spaces
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
