Description

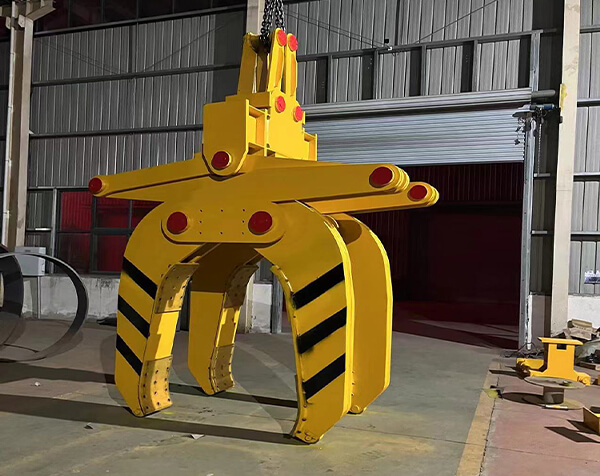

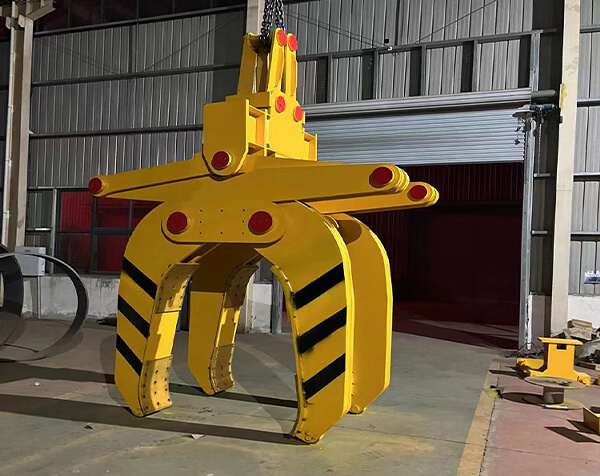

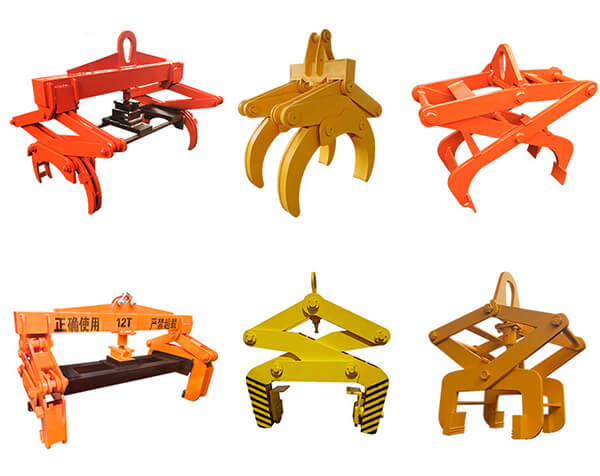

The steel billet lifting fixture uses the lever principle to lift the steel billet, without the need for a power source. It is positioned and locked by a rotating automatic locking device or mechanical automatic locking device. It can lift single-layer and multi-layer steel billets and has the characteristic of flexible operation. The billet clamp mainly consists of seven parts: a lifting beam, a connecting rod, an automatic locking device, a synchronizer, a clamp arm, a support plate, and a clamp tooth.
Features
- Billet( plate) lifter is used for lifting steel billet, aluminum plate &copperplate.
- Clamp force is produced by lever mechanism through gravity of slab.
- The opening and close of clamp is controlled by auto latch mechanism.
- Single or multiple slabs can be lifted. Single in structure, convenient and agile in usage.
- The wide range of available square billet is 100mm-400mm.
- 1 - 60t billet handing capacity depending on the size of the lifter.
- Support customized steel plate lifting clamp.
Technical Data
|
WLL |
Dimensions |
Specifications |
Scope |
|||
|
A |
L |
H |
B |
h |
S |
|
|
3T |
1000 |
600 |
1300 |
100-300 |
150 |
/ |
|
5T |
1350 |
600 |
1750 |
250-450 |
300 |
/ |
|
5T |
1500 |
600 |
2080 |
450-750 |
300 |
/ |
|
8T |
1530 |
1000 |
2100 |
450-750 |
300 |
/ |
|
8T |
1690 |
1000 |
2380 |
700-1120 |
300 |
/ |
|
12T |
1800 |
1600 |
2300 |
450-750 |
300 |
50-250 |
|
12T |
1820 |
1600 |
2435 |
700-1020 |
300 |
50-250 |
|
12T |
2225 |
1600 |
2750 |
850-1280 |
300 |
50-250 |
|
16T |
2030 |
2000 |
2620 |
700-1020 |
300 |
50-250 |
|
16T |
2250 |
2000 |
2850 |
850-1280 |
360 |
50-300 |
|
16T |
2400 |
2000 |
3150 |
1160-1500 |
360 |
50-300 |
|
20T |
2450 |
2000 |
3400 |
1000-1400 |
360 |
50-300 |
|
20T |
2500 |
2000 |
3500 |
1400-1750 |
360 |
50-300 |
|
20T |
2610 |
2000 |
3830 |
1400-1800 |
450 |
50-400 |
|
25T |
2570 |
2000 |
3450 |
1100-1600 |
450 |
50-400 |
|
25T |
2890 |
2000 |
3750 |
1450-2000 |
450 |
50-400 |
|
30T |
2800 |
2000 |
3750 |
1100-1600 |
450 |
50-400 |
|
30T |
2900 |
2000 |
3910 |
1450-2000 |
450 |
50-40 |
Applications
Clamps are widely used in industries such as metallurgy, transportation, railways, ports, etc
