Description

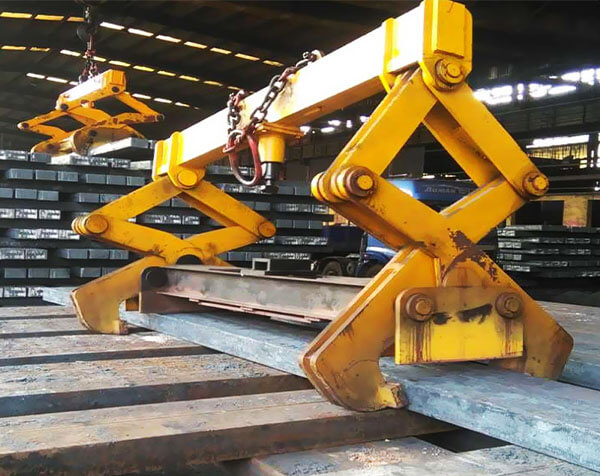

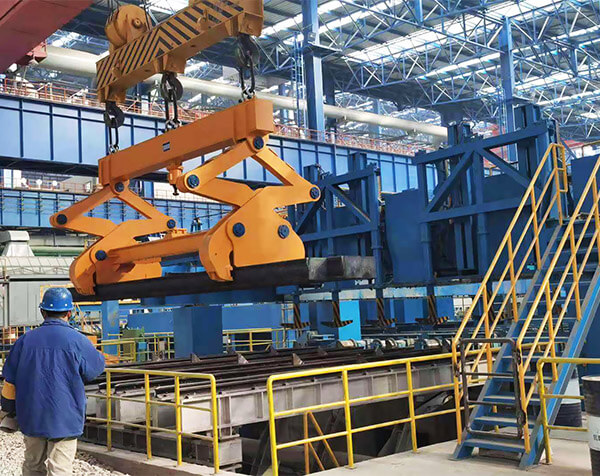

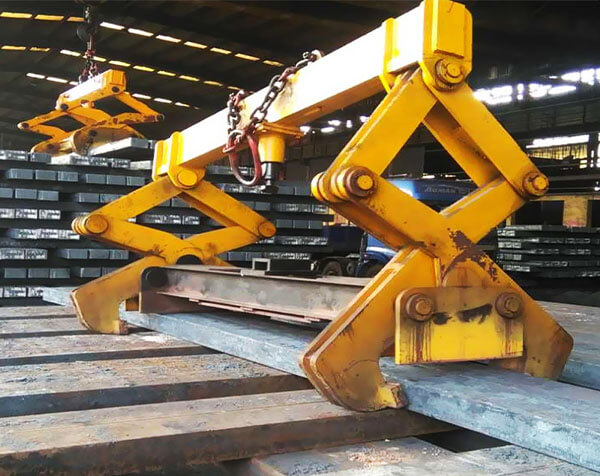

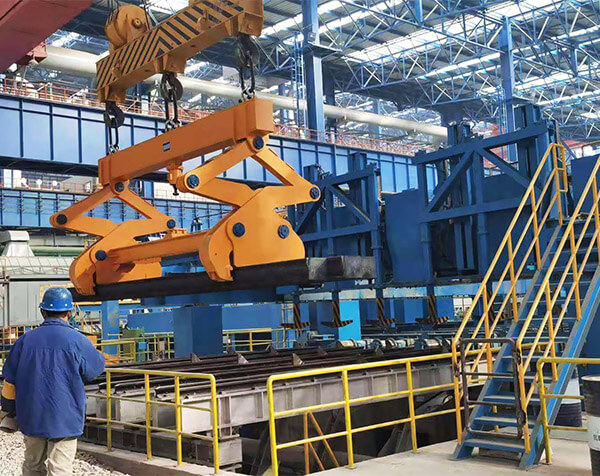

Steel billet clamp is a tool used for mechanical processing, mainly used to clamp materials such as steel billets and iron billets for cutting and processing on processing equipment such as lathes and drilling machines. The working principle of the billet clamp is to fix the billet in the clamp through a clamping device, keeping it in a stable position, thereby ensuring accuracy and efficiency during the processing.
Features
- Using a gravity opening and closing mechanism to control the opening and closing of the clamp.
- The clamp generates sufficient clamping force through a lever mechanism, and then uses the frictional force generated by the clamping force to clamp the slab.
- The clamp has two pairs of detachable jaws, which are forged from high-strength alloy steel and welded with hard alloy welding rods after heat treatment, with high hardness, strength, and toughness.
- There are various structures for connecting clamps and hooks, and for long slabs, they can also be designed as three pairs of clamp teeth.
- The clamp arm and connecting arm loading surface of the clamp are I-shaped or T-shaped structures, and the connecting part with the shaft is a sleeve structure, which has good rigidity and long service life.
- All clamps for lifting high-temperature steel billets are lubricated with oil injection holes, while lifting normal temperature steel billets relies on lubricating oil stored in oil tanks for lubrication.
Technical Data
|
Model Type |
Rated load T |
Range of slab width B mm mm |
A max mm |
H max mm |
|
12T |
12 |
450-600 |
980 |
3280 |
|
18T |
18 |
500-800 |
1335 |
2670 |
|
25T |
25 |
600-1100 |
1680 |
3660 |
|
35T |
35 |
800-1600 |
3350 |
4200 |
|
65T |
65 |
1600-3250 |
4380 |
5710 |
Applications
Clamps are widely used in industries such as metallurgy, transportation, railways, ports, etc
