Description

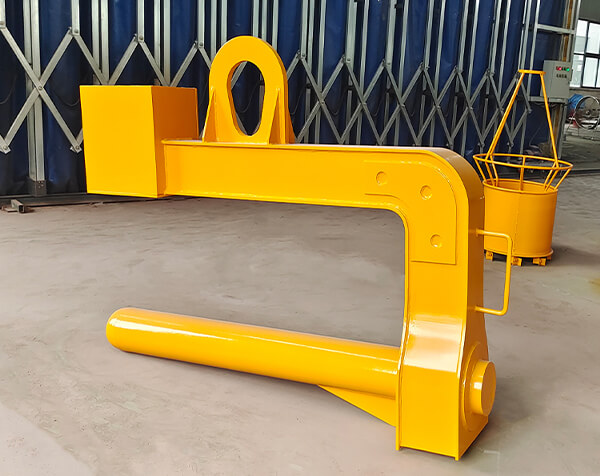

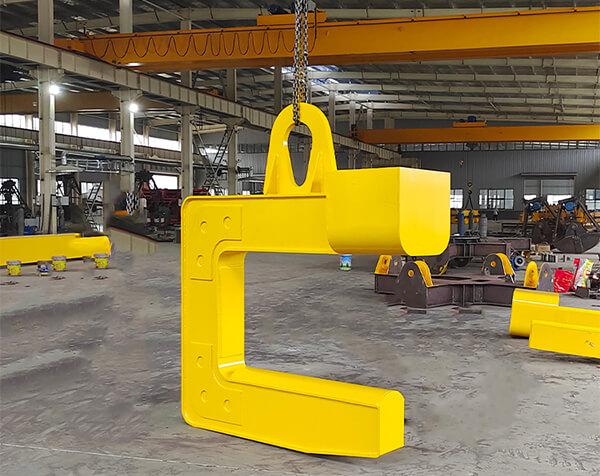

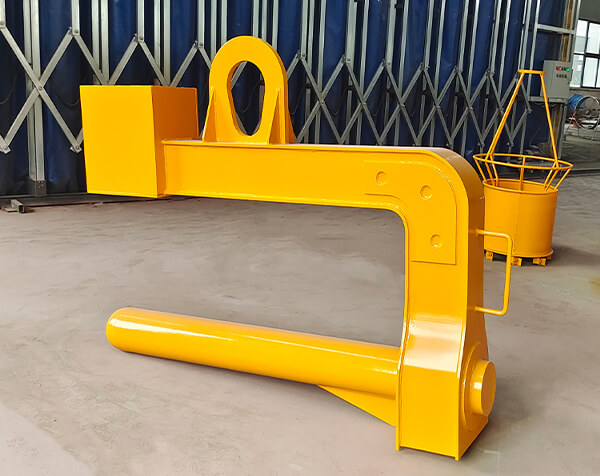

Steel Coil Lifting C Hook Crane Parts is mainly used for the horizontal lifting of the coiled plate. Because its shape resembles the literal C, it is called a C-type spreader.
The structure is simple and reasonable, the action is flexible, the use is convenient, and the lifting is safe and reliable.
Features
1.Simple structure in linear type ,easy in installation and maintain.
2.Easy to fabricate, no damage to steel coils, large work place and slightly complicated operation.
3.With lower cost and maintain conveniently.
4.Handles a wide range of coil widths.
Technical Data
|
work load limit |
coil width(mm) |
the diameter of inner coil (mm) |
inner width |
inner height |
itself weight(kg) |
|
3T |
300-500 |
≥400 |
500 |
450 |
350 |
|
5T |
750-900 |
≥400 |
900 |
500 |
450 |
|
900-1100 |
≥400 |
1100 |
600 |
650 |
|
|
1100-1300 |
≥560 |
1300 |
600 |
800 |
|
|
10T |
700-900 |
≥560 |
900 |
650 |
600 |
|
900-1120 |
≥560 |
1120 |
850 |
900 |
|
|
1100-1300 |
≥560 |
1300 |
750 |
1000 |
|
|
1300-1500 |
≥560 |
1500 |
850 |
1200 |
|
|
15T |
900-1100 |
≥560 |
1100 |
850 |
1200 |
|
1100-1500 |
≥560 |
1500 |
850 |
1600 |
|
|
25T |
900-1100 |
≥560 |
1100 |
860 |
1800 |
|
1100-1500 |
≥560 |
1500 |
860 |
2500 |
|
|
30T |
1400-1660 |
≥560 |
1160 |
850 |
3400 |
Applications
Construction sites, factory, workshop, warehouse, power station, outdoor storage yards, logistic, etc.
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
