Description

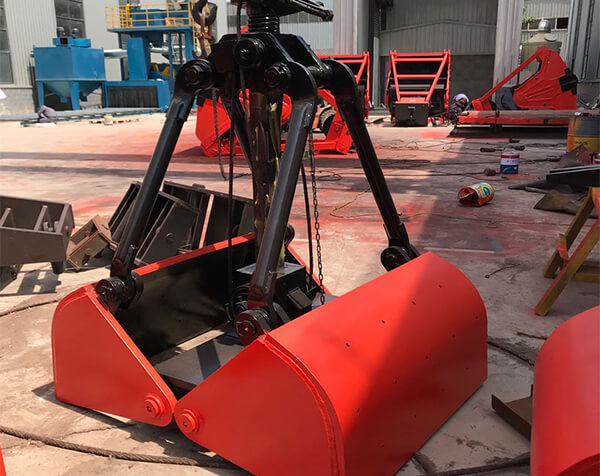

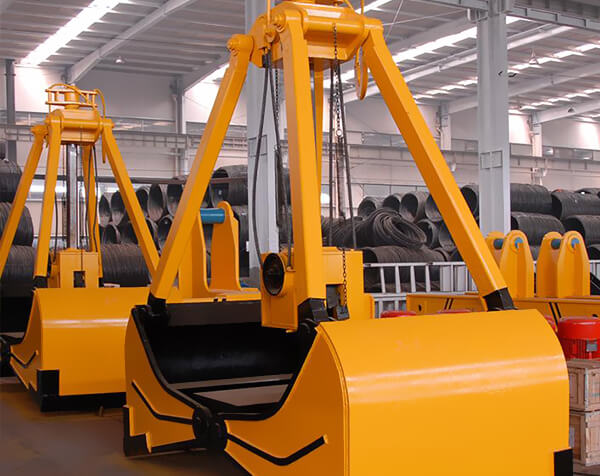

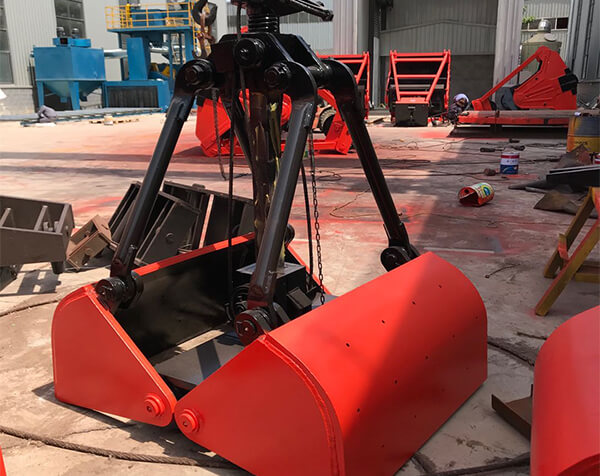

The single rope grab is applicable to all kinds of cranes with only one lifting drum(single hook). Its opening and closing mechanism is novel, it can be opened and closed freely during loading and unloading, and the whole machine is easy to use, remove and hang. It is suitable for underwater and land operation for grasping and stacking.
Features
1.Simplicity of Design
The single-rope suspended grab is known for its straightforward design, which makes it easy to operate and maintain. This simplicity reduces the likelihood of mechanical failures and simplifies maintenance procedures.
2.Versatility
These grabs can be used for a wide range of materials and applications, from handling bulk materials like sand and gravel to smaller objects. Their adaptability makes them suitable for various industries, including construction, mining, and agriculture.
3.Cost-Effectiveness
Single-rope suspended grabs are often more cost-effective compared to more complex grabbing systems. They offer a cost-efficient solution for lifting and transporting materials without the need for expensive additional equipment or controls.
4.Ease of Use
These grabs are relatively easy for operators to handle and control. Operators can quickly grasp and release materials, leading to efficient loading and unloading processes. This ease of use contributes to improved productivity on worksites.
Technical Data
|
Model |
Volume m³ |
Self-weight ton |
Crane capacity ton |
Material density t/m³ |
The dia. of pulley mm |
The dia. of steel rope mm |
|
U70 |
0.75 |
1.9 |
5 |
2.5 |
Φ230 |
Φ15 |
|
U71 |
0.3 |
1 |
3 |
2.0~2.5 |
Φ200 |
Φ13 |
|
U73 |
0.5 |
1.5 |
3~5 |
2.0~2.5 |
Φ230 |
Φ15 |
|
U74 |
0.75 |
2.3 |
5 |
3.2 |
Φ230 |
Φ15 |
|
U75 |
0.75 |
2.1 |
5 |
3.0 |
Φ250 |
Φ15 |
|
U77 |
1 |
2.3 |
5 |
2.3 |
Φ250 |
Φ16 |
|
U79 |
1.5 |
3.1 |
8 |
2.8 |
Φ250 |
Φ21 |
|
U64 |
2 |
5.5 |
10 |
2.5 |
Φ300 |
Φ21 |
|
U65 |
1.25 |
4.25 |
10 |
3.2 |
Φ300 |
Φ21 |
|
U80 |
9 |
6.2 |
15 |
0.5~1.2 |
Φ400 |
Φ23.5 |
|
U82 |
15 |
10.3 |
25 |
1.0 |
Φ460 |
Φ28 |
Applications
Construction engineering, mining, port logistics, metallurgical industry, waste treatment, forestry, agriculture, water conservancy and energy
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
