Description

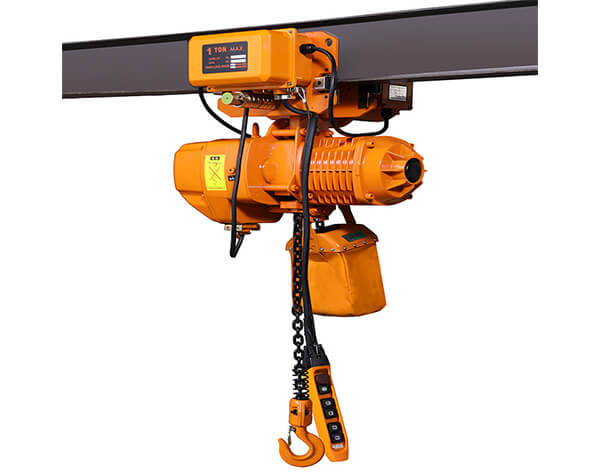

Electric chain hoist adopts strength aluminum alloy body, beautiful appearance, compact body, small volume and light weight. It adopts two-stage gear transmission, and high-speed level is helical gear transmission, therefore, the transmission is stable, the noise is small, and the strength of parts is high; its main parts are made of alloy steel and processed by many special heat treatment processes, with high strength and good wear resistance.

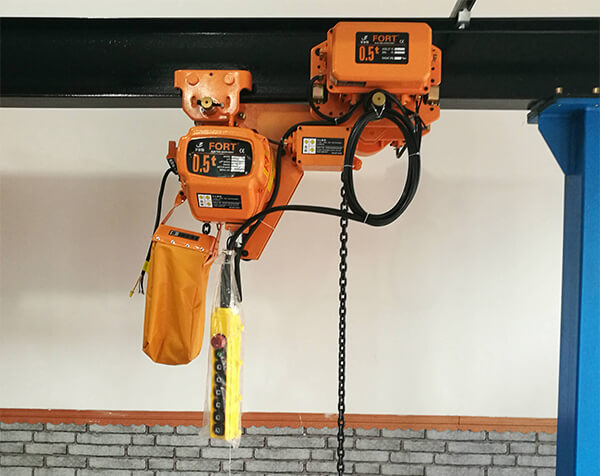

Trolley type electric chain hoist can be mounted on a moving track for easy lifting of goods.
Features
1.Electric chain hoist, the shell is light but hard.
2.The hook is hot forged with perfect strength and is not easy to break.
3.Button, high-quality remote control.
Technical Data
|
Type |
Capacity(t) |
Lifting Height(m) |
Lifting Speed(m/min) |
Lifting Motor |
I-Beam(mm) |
||||
|
Power(kw) |
Rotation Speed(r/min) |
Phase |
Voltage(v) |
Frequency(hz/s) |
|||||
|
01 |
1 |
3/9 |
3.9 |
0.75 |
1440 |
3 |
220-440 |
50/60 |
100-160 |
|
02 |
2 |
3/9 |
3.4 |
1.5 |
1440 |
3 |
220-440 |
50/60 |
120-160 |
|
03 |
3 |
3/9 |
3.4 |
3.0 |
1440 |
3 |
220-440 |
50/60 |
120-180 |
|
04 |
5 |
3/9 |
2.8 |
3.0 |
1440 |
3 |
220-440 |
50/60 |
120-180 |
Options And Components
Applications
Factories, mines, ports, cargo storage areas and shops, and is essential for improving work efficiency and improving working conditions.
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
