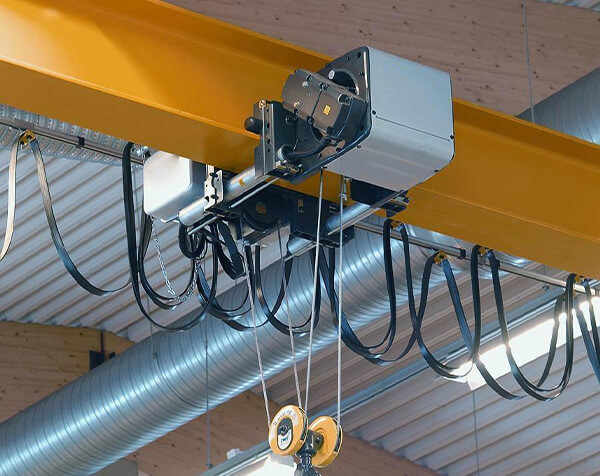

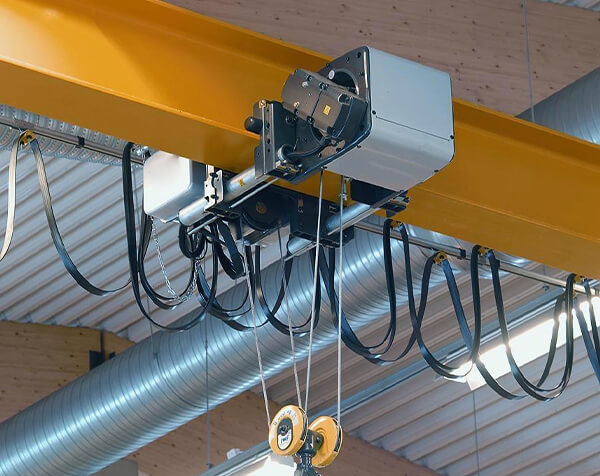

European Wire Rope Electric Hoist

Description

It employs motor of hoisting mechanism and reducer imported from Germany. The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user. Modular design increase the reliability of mechanism meanwhile reduces the time and cost for maintaining.

It has more and faster hoist speed and various pulley ratio which can be selected. The standard traveling mechanism of trolley is controlled by converter, with the speed of 20m/min, which makes a little swing and accurate position if hoisting items while trolley travelling as well as lifts precision and valuable items reliably.

Features

1. The three-point support statically determinate structure reduces internal stress, and the side-mounted reducer and cantilever motor form a flexible drive system to ensure stable operation and low noise.
2. Imported motor, aluminum alloy wire drawing, good heat dissipation, overheating protection and alarm function.
3. Equipped with an intelligent safe operation monitoring system, which can continuously record the working status and prevent non-professional operation.

Technical Data

Using for single girder bridge crane

1.Mainly used on single girder crane with capacity 1-20T

2.It has integrated and compact design which will saves space for the user.

3.Modular design increase the reliability of mechanism meanwhile reduces the time and cost for maintaining.

4.It has more and faster hoisting speed than traditional hoist.

Using for double girder bridge crane

1.Mainly used on double girder crane with capacity 2~80T.

2.It has integrated and compact design which will saves space for the user.

3.Modular design increase the reliability of mechanism meanwhile reduces the time and cost for maintaining.

4.The standard trolley traveling mechanism is controlled by converter which makes a little swing and accurate position during working.

Double girder wire rope hoist Technical Data

Options And Components

Power Supply Bus Bar

Power Supply Bus Bar is a group of power transmission devices that supply power to mobile devices. Due to the movement, the mobile device needs to constantly change its position, and in each different position, the mobile device must be able to obtain power at any time, otherwise it cannot continue to move, and then the trolley line is required.

Remote Control

Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.

Applications

Suitable for the installation of various bridges, port and wharf projects, large-scale bridges and large-scale factory buildings, and electrical engineering equipment.
