Description

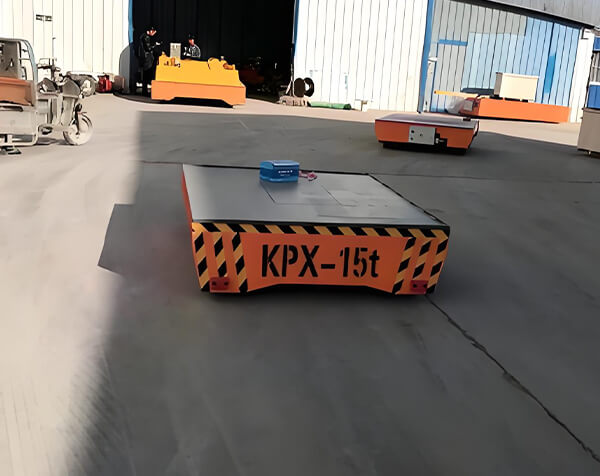

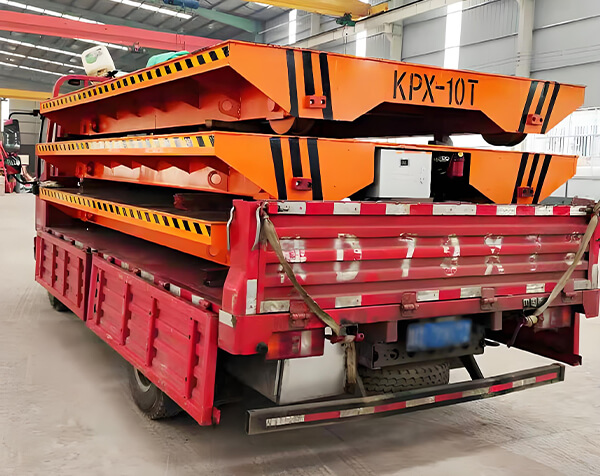

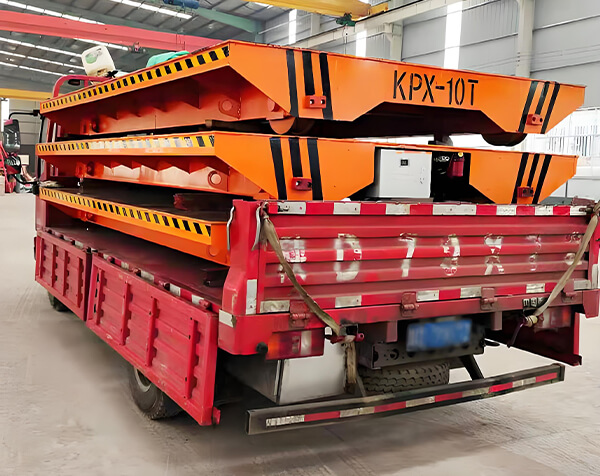

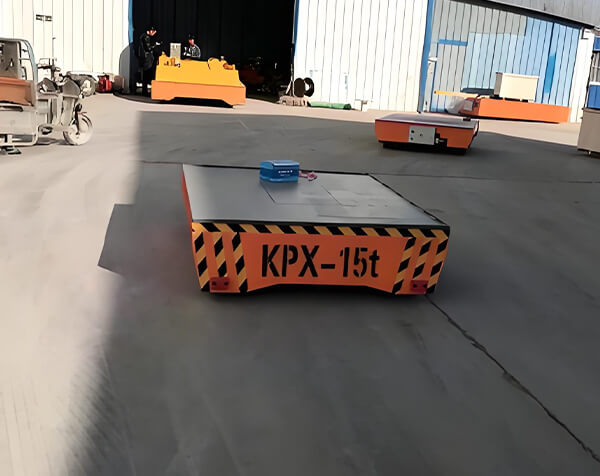

The KPX series electric flat car is a new type of electric flat car powered by batteries in the absence of power. It solves the problem of no power supply. It can be driven centrally or separately. It has a beautiful and reasonable appearance and is easy to maintain.
Features
It relies on batteries to provide power to the DC traction motor to drive the vehicle. Compared with AC motors, DC motors have the advantages of not easy to burn, large starting torque, and strong overload capacity. Since there is no cable, the flat car is safe to run and does not hinder cross-transportation.
Technical Data
|
Technical Reference Data Table for PX Battery Powered Series Electric Flat Cars |
||||||||||||||
|
Flat car model |
KPX-2t |
KPX-5t |
KPX-10t |
KPX-16t |
KPX-20t |
KPX-25t |
KPX-30t |
KPX-40t |
KPX-50t |
KPX-63t |
KPX-80t |
KPX-100t |
KPX-150t |
|
|
Rated load capacity (t) |
2 |
5 |
10 |
16 |
20 |
25 |
30 |
40 |
50 |
63 |
80 |
100 |
150 |
|
|
Table size |
Length (L) |
2000 |
3500 |
3600 |
4000 |
4000 |
4500 |
4500 |
5000 |
5500 |
5600 |
6000 |
6500 |
10000 |
|
(mm) |
Width (W) |
1500 |
2000 |
2000 |
2000 |
2200 |
2200 |
2200 |
2400 |
2400 |
2400 |
2600 |
2800 |
3000 |
|
|
Height (H) |
150 |
500 |
500 |
550 |
550 |
600 |
600 |
650 |
650 |
700 |
800 |
900 |
1200 |
|
Track width (mm) |
1200 |
2500 |
2600 |
2800 |
2800 |
3200 |
3200 |
3800 |
4200 |
4300 |
4700 |
4900 |
7000 |
|
|
Rail inner distance (mm) |
1200 |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
1435 |
1800 |
2000 |
2000 |
|
|
Wheel diameter (mm) |
Φ270 |
Φ300 |
Φ300 |
Φ350 |
Φ350 |
Φ400 |
Φ400 |
Φ500 |
Φ500 |
Φ600 |
Φ600 |
Φ600 |
Φ600 |
|
|
Number of wheels (pieces) |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
4 |
8 |
|
|
Ground clearance (mm) |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
50 |
75 |
75 |
75 |
75 |
|
|
Running speed (m/min) |
0-25 |
0-25 |
0-25 |
0-20 |
0-20 |
0-20 |
0=20 |
0-20 |
0-20 |
0-20 |
0-20 |
0-20 |
0-18 |
|
|
Motor power (kW) |
1 |
1.2 |
1.6 |
2 |
2.2 |
3 |
3.5 |
4 |
5 |
6.3 |
8 |
10 |
15 |
|
|
Battery capacity (Ah) |
180 |
180 |
160 |
180 |
180 |
250 |
250 |
300 |
330 |
400 |
400 |
440 |
600 |
|
|
Battery voltage (V) |
24 |
36 |
48 |
48 |
48 |
48 |
48 |
48 |
48 |
48 |
72 |
72 |
72 |
|
|
Full load continuous running time |
4.32 |
5.4 |
4.8 |
4.3 |
4 |
4 |
3.5 |
3.6 |
3.3 |
3 |
3.6 |
3.2 |
2.9 |
|
|
Range (km) |
6.5 |
8.1 |
7.2 |
5.1 |
4.8 |
4.8 |
4.2 |
4.3 |
4 |
3.6 |
4.3 |
3.8 |
3.2 |
|
|
Large wheel pressure (KN) |
14.4 |
25.8 |
42.6 |
64.5 |
77.7 |
94.5 |
110.4 |
142.8 |
174 |
221.4 |
278.4 |
343.8 |
265.2 |
|
|
Reference weight (t) |
2.8 |
3.6 |
4.2 |
5.5 |
5.9 |
6.5 |
6.8 |
7.6 |
8 |
10.8 |
12.8 |
14.6 |
26.8 |
|
|
Recommended track model |
P15 |
P18 |
P18 |
P24 |
P24 |
P38 |
P38 |
P43 |
P43 |
P50 |
P50 |
QU100 |
QU100 |
|
|
Explanation: 1. The load capacity, table size, and rail inner distance can be designed and manufactured according to customer needs; 2. Optional wireless remote control device (domestic or imported); 3. Optional automatic stop and limit device when encountering people; |
||||||||||||||
|
4. Optional maintenance free batteries, lithium batteries, explosion-proof batteries, high-temperature batteries, etc; 5. Optional DC brushed motor and DC brushless motor; 6. It can be optionally equipped with domestic and imported appliances. |
||||||||||||||
Options And Components
Applications
Electric flat cars are widely used in machine manufacturing and metallurgical factories to transport heavy objects across the workshop with cranes. The rail flat cars are low in height, with a reinforced table, easy to modify and maintain.
Service
2. Providing customized product solutions based on different working conditions, temperature, type, voltage, etc.
2. Replacement of damaged components (non-human-induced) is provided during the warranty period.
2. Safety and Compliance Support: Ensure that their products comply with local and international safety and regulatory standards, and provide relevant documentation and support.
2. We will send professional Chinese crane installation team or find local crane installation team according to the product plan and customer demand, to ensure that the product can be used safely and effectively.
