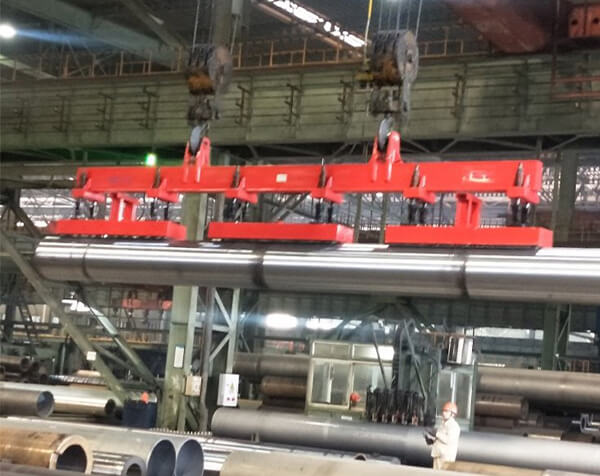

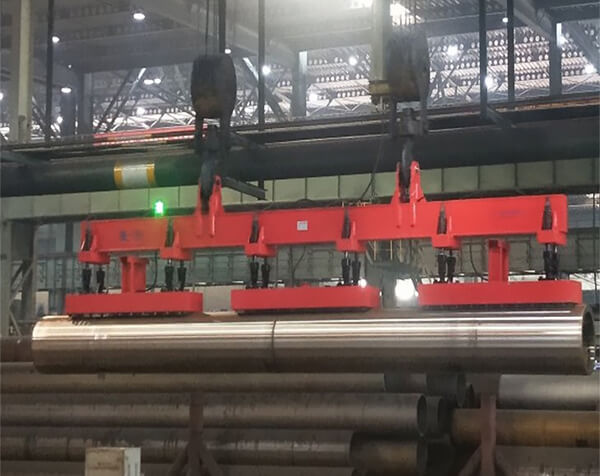

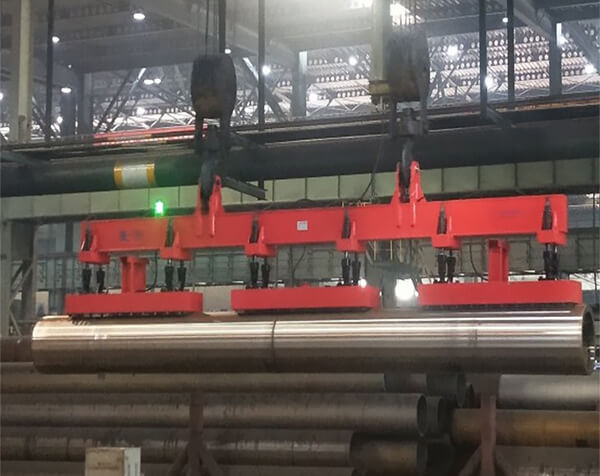

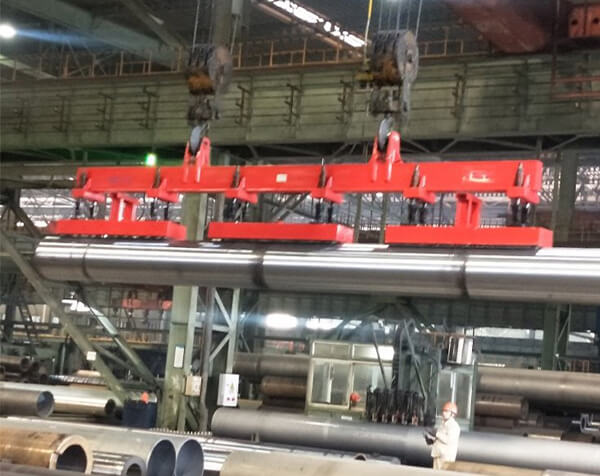

Electric Permanent Lifter

Description

The Electric Permanent Lifter suction cup utilizes the interaction between the electromagnet and the permanent magnet to adsorb the workpiece. When current passes through an electromagnet, a magnetic field is generated, which attracts the permanent magnet. When the current passes through the permanent magnet, an opposite magnetic field is generated to counteract the magnetic field generated by the electromagnet, causing the workpiece to be firmly attached to the suction cup. When the direction of the current changes, the position of the workpiece will also change accordingly.

Features

1. The Electric Permanent Lifter lifting tools and fixtures can be used for lifting and handling various metal and non-metallic materials, such as steel, mechanical parts, automotive manufacturing and other production processes.
2. Positioning and fixation: Electric permanent magnet fixtures and adsorption devices can be used for positioning and fixation of various metal and non-metal materials, such as metal parts in machine tools and molds, goods in logistics and packaging industries, etc.

Technical Data

Options And Components

Lifting Magnet

A device with an iron core inside and using a coil with current to make it magnetic like a magnet is called an electromagnet. The iron core should be made of soft iron or silicon steel that is easy to magnetize and easy to lose magnetism. This type of electromagnet has magnetism when powered on, but disappears when powered off. Electromagnets have extremely wide applications in daily life. The invention of electromagnets also greatly increased the power of generators.

Electrical control cabinet

The Electrical control cabinet adopts a three wire two phase half wave rectification method, and uses the energy storage of the electromagnet to control reverse demagnetization during discharge. This product has the characteristics of simple circuit, compact structure, small volume, and light weight. DKP-A is a three wire two half wave rectifier control equipment. When the grid voltage is too high or too low, adjusting the potentiometer can adjust the output voltage within 170-240V, so that the output voltage is basically close to 220V

Cable drum

Cable reel is a cable winding device that provides power, control power, or control signals for large mobile devices. It is applied to heavy machinery equipment such as port gantry cranes, container cranes, ship loaders, tower cranes, and other similar working conditions.

Lifting beam

Transport and stack various long materials, such as wood, steel pipes, bars, profiles, steel plates, etc., using the balance beam hooks on two hooks or the electromagnetic disc on the balance beam. The suspension beam is refined from low-carbon alloy steel. The load capacity range is 1T to 100T. There are various styles such as single beam, double beam, H-beam, T-beam, cross beam, fixed rotor crossbeam, etc

Applications

Lifting electromagnets are widely used in various occasions. In industries such as steel, rail transit, and automobiles, lifting electromagnets can be used to automatically pick up and place various metal materials such as steel, alloy materials, steel plates, hollow shafts, etc. It can also be used for automatic collection of garbage, disposal of hazardous materials such as air and chemical media, or for rescue work in harsh environments such as high altitude. It can also be used in fields such as mechanical processing, loading and unloading, and handling.
