MW5 Scrap Lifting Electromagnet

Description

MW5 series electromagnet suitable for cast ingot, steel ball, machine chip, for various kinds of steel scraps, return scrape, cropping, baling scraps and etc in foundry factories and for iron powder in coal washery, during slag disposal process, it can remove large size of iron at initial step. Outlet box has two chambers, an extra-thick fender and an anti-twist setting. There are the excitation options; rated voltage DC220V; strong excitation; over excitation.

Features

1. High quality aluminum wire, purity 99.75%.
2. Duty cycle up to TD-60%, TD-75%,long working time.
3. The suction power is more than 30% higher than that of ordinary types.
4. Heat resist type magnet adopts a unique thermal insulation method, the Max. temperature can reach to 700-800℃, which will expand the magnet application range again.

Technical Data

Options And Components

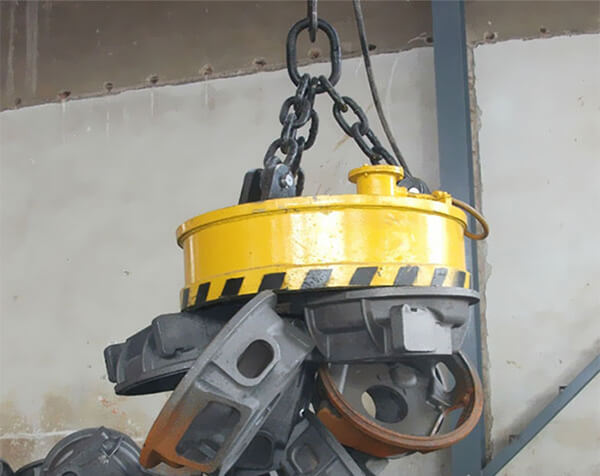

Lifting Magnet

A device with an iron core inside and using a coil with current to make it magnetic like a magnet is called an electromagnet. The iron core should be made of soft iron or silicon steel that is easy to magnetize and easy to lose magnetism. This type of electromagnet has magnetism when powered on, but disappears when powered off. Electromagnets have extremely wide applications in daily life. The invention of electromagnets also greatly increased the power of generators.

Electrical Control Cabinet

The Electrical control cabinet adopts a three wire two phase half wave rectification method, and uses the energy storage of the electromagnet to control reverse demagnetization during discharge. This product has the characteristics of simple circuit, compact structure, small volume, and light weight. DKP-A is a three wire two half wave rectifier control equipment. When the grid voltage is too high or too low, adjusting the potentiometer can adjust the output voltage within 170-240V, so that the output voltage is basically close to 220V.

Cable drum

Cable reel is a cable winding device that provides power, control power, or control signals for large mobile devices. It is applied to heavy machinery equipment such as port gantry cranes, container cranes, ship loaders, tower cranes, and other similar working conditions.

Applications

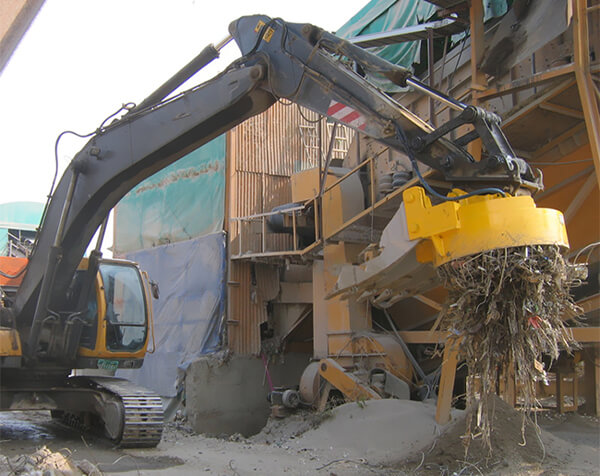

Lifting electromagnets are widely used in various occasions. In industries such as steel, rail transit, and automobiles, lifting electromagnets can be used to automatically pick up and place various metal materials such as steel, alloy materials, steel plates, hollow shafts, etc. It can also be used for automatic collection of garbage, disposal of hazardous materials such as air and chemical media, or for rescue work in harsh environments such as high altitude. It can also be used in fields such as mechanical processing, loading and unloading, and handling.
