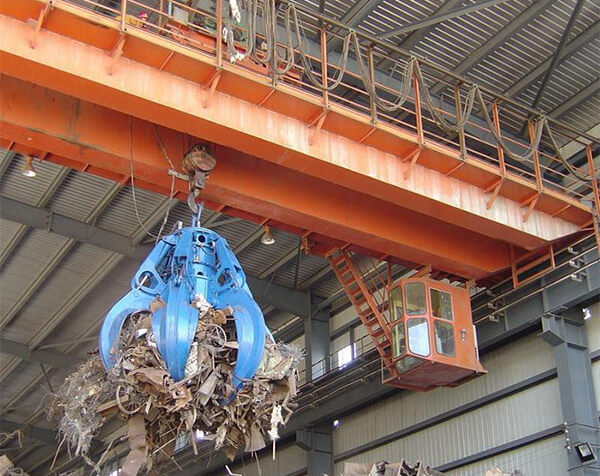

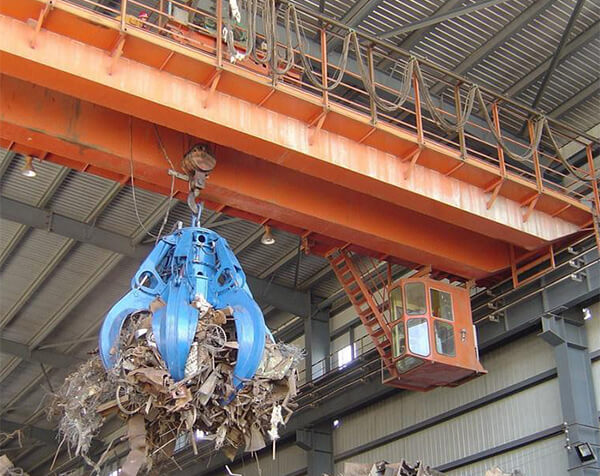

Double Beam Multilobe Grab Bridge Crane

Description

Multi-petal (orange-petal) type: mainly used with single-hook cranes for grabbing domestic garbage, scrap steel and other materials, often used in environmental protection power plants, steel plants, etc.

Comprehensive use of electro-hydraulic pressure machinery technology, strong gripping force, high degree of full automation, mainly used to process power and fine bulk materials, such as chemicals, fertilizers, grain, coal, coke, iron ore, sand, granular building materials and crushed materials Handling tools such as stone.

It has been widely used in ports, steel mills, power plants, ships and garbage treatment plants, and used with tower cranes, ship cranes, ship unloaders, crane cranes and other types of cranes.

Features

1. High security

The safety protection devices are complete, including limit switches, overload protection devices, emergency stop devices, etc. for lifting and CT, to ensure the safety of the operation; During operation, variable frequency control can be carried out to ensure the safe movement and landing of goods.

2. Flexible operation and stable performance

The gears in the reducer adopt helical gears, which can be automatically lubricated and have better equipment flexibility; Can be remotely controlled for easier operation.

3. Strong stiffness and good quality

The steel plate raw materials are made of products from top tier factories, with stable and guaranteed quality, low failure rate, and better adaptability to special working conditions.

4. High work efficiency and good durability

Adopting laser assisted height measurement technology for more accurate positioning; High level of work, supporting all day work and demanding work demands.

Technical Data

Options And Components

Main beam

The main beam is a box beam or H-beam structure, welded and formed from steel plates. The steel plate material is domestic steel (Q235B). The vertical winding is in accordance with Chinese national standards. All steel plates are subjected to shot blasting pre-treatment to achieve Sa2.5 level standardization. Before welding, the steel plates are carefully inspected and cleaned, usually by automatic welding machines (MIG or semi-automatic welding).

End beam

End beam is a supporting structure designed for lifting machinery, usually located at both ends of the crane, and its function is to provide stable support and balance for the crane. Cranes need to bear enormous weight and inertial forces during operation. Without the support of end beams, the crane is prone to imbalance or even overturning. Therefore, the role of the crane end beam cannot be ignored, as it is one of the key components for the safe operation of the crane.

Trolley

Crane trolley is a load-bearing equipment that can travel along the running track, transport goods, and lift operations. It is usually used as a supporting component for large lifting equipment such as bridge cranes, gantry cranes, gantry cranes, and cantilever cranes. It is mainly used for logistics handling and heavy lifting operations in factories, docks, shipyards, and other places.

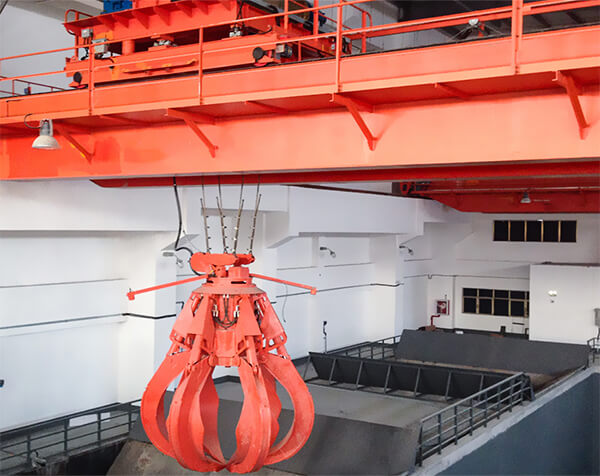

Multi petal grab bucket

Due to its resemblance to peeled oranges, the multi petal grab bucket is commonly referred to as the orange petal grab bucket. The grab bucket is usually operated in conjunction with a crane, mainly loading and unloading larger objects such as stones, iron blocks, coal blocks, etc The front end of the grab bucket is pointed, making it easy to insert materials for grabbing and improving overall digging power. It is a powerful grab bucket!

Crane remote control

Industrial wireless remote control is a remote wireless remote control device specifically used to control construction machinery or industrial equipment.

Crane control box

The surface of the control box has undergone anti-corrosion treatment Reasonable layout for easy maintenance Protection level IP55 Environmental temperature:<45 ° C, humidity<90%

Applications

This product is a regular crane widely used at open ground and warehouses to load, unload or grab materials. It has two controlling methods, ground controlling and room controlling.
